Mercury 808.127 Economy Twin Aluminium Braid RG6 75 Ohms Foam Coaxial Cable

Be the first to review this product

Brand new in packaging, Mercury 808.127 Cable

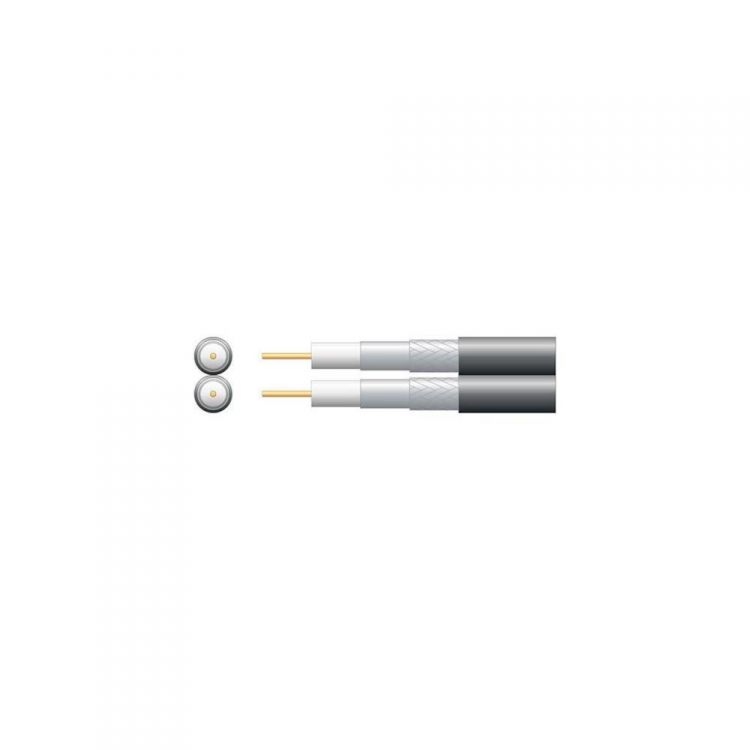

75 Ohms twin RG6 coaxial cable constructed of solid copper clad steel conductor, foam filled polyethylene dielectric, aluminium foil screen, aluminium braid and PVC sheath. The overall screen and braid significantly reduce noise penetration to the conductor making it suitable for satellite dish installation with dual or quad LNB.

Features:

  • Solid CCS conductor.
  • Foam filled PE dielectric.
  • Binded aluminium screen.
  • Aluminium braid.
  • Supplied in 100m or 250m reel with metric cut markers.
  • CSA: 2 x 0.79mm˛.
  • Conductor diameter: 2 x 1mm.
  • Conductor material: Solid CCS.
  • Braid: 2 x 64/0.12mm.
  • Braid material: Aluminium.
  • Screen: Aluminium / PET foil.
  • Dielectric: 4.6mm foam PE.
  • Cable diameter: 2 x 6.6mm.
  • Impedance: 75 Ohms.
  • Capacitance: 54pF/m.
  • Velocity factor: 83%.
  • Return loss 5-400MHz: 24dB min./100m.
  • Return loss 450-1000MHz: 20dB min./100m.
  • Return loss 1000-2150MHz: 16dB min./100m.
  • Attenuation @ 5MHz: 2.8dB max./100m.
  • Attenuation @ 50MHz: 5.1dB max./100m.
  • Attenuation @ 100MHz: 6.9dB max./100m.
  • Attenuation @ 200MHz: 10.1dB max./100m.
  • Attenuation @ 400MHz: 14.9dB max./100m.
  • Attenuation @ 860MHz: 20.1dB max./100m.
  • Attenuation @ 1000MHz: 22.2dB max./100m.
  • Attenuation @ 1750MHz: 29.6dB max./100m.
  • Attenuation @ 2150MHz: 33.3dB max./100m.
  • Colour: Black.

    • 2 In Stock
    £25.24 inc VAT
