Mercury 807.012 Economy Foam Filled RG6 Satellite Cable Copper Clad Steel - New

Be the first to review this product

Brand new in packaging, Mercury 807.012 Satellite Cable

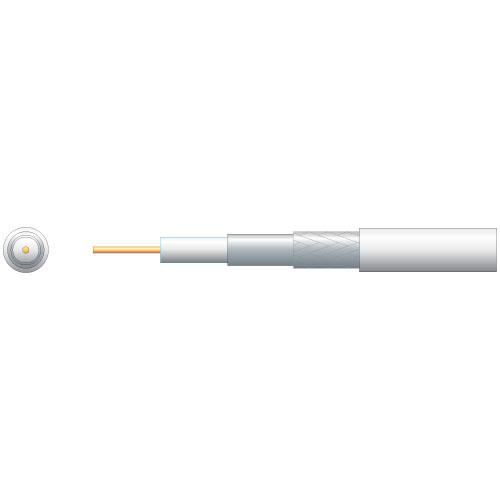

Coaxial cable constructed by copper clad steel conductor, aluminium magnesium braiding with aluminium foil screen and foam filled dielectric. Suitable for satellite installation use.

Features:

  • CSA: 0.79mm²
  • Conductor material: Copper clad steel
  • Braid: 48 x 0.12mmØ
  • Braid material: Aluminium
  • Screen: Aluminium foil
  • Dielectric: 4.6mmØ Foam P.E.
  • Impedance: 75 ohms
  • Velocity factor: 0.83 min.
  • Return loss 5-400MHz: 24dB min.
  • Return loss 450-1000MHz: 20dB min.
  • Return loss 1000-2150MHz: 16dB min.
  • Attenuation @ 5MHz: 2.8dB max.
  • Attenuation @ 50MHz: 5.1dB max.
  • Attenuation @ 100MHz: 6.9dB max.
  • Attenuation @ 200MHz: 10.1dB max.
  • Attenuation @ 400MHz: 14.9dB max.
  • Attenuation @ 860MHz: 20.1dB max.
  • Attenuation @ 1000MHz: 22.2dB max.
  • Attenuation @ 1750MHz: 29.6dB max.
  • Attenuation @ 2150MHz: 33.3dB max.
  • Length: 100m
  • Colour: White

  • 1 In Stock
    £17.62 inc VAT
