Mercury 807.025 Economy 100U Digital TV/Satellite Coaxial Cable CCA White - 100m

Be the first to review this product

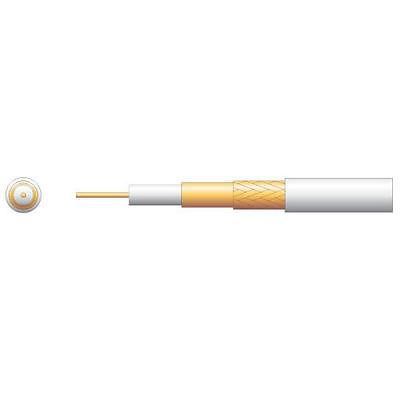

Mercury 807.025 Coaxial Cable Coaxial cable constructed by bare copper conductor, copper clad aluminium braiding with copper foil screen and foam filled dielectric. Suitable for digital TV and satellite installation use. Features: CSA: 0.79mm² Conductor Material: Bare copper Braid: 64 x 0.12mmŲ Braid material: Copper clad aluminium Screen: Copper foil Dielectric: 4.6mmŲ Foam P.E. Impedance: 75 ohms Velocity factor: 0.83 min. Return loss 5-400MHz: 28dB min. Return loss 450-1000MHz: 24dB min. Return loss 1000-2150MHz: 18dB min. Attenuation @ 5MHz: 1.8dB max. Attenuation @ 50MHz: 4.7dB max. Attenuation @ 100MHz: 6.6dB max. Attenuation @ 200MHz: 9.7dB max. Attenuation @ 400MHz: 14.6dB max. Attenuation @ 860MHz: 19.6dB max. Attenuation @ 1000MHz: 21.6dB max. Attenuation @ 1750MHz: 29.1dB max. Attenuation @ 2150MHz: 32.7dB max. Colour: White
