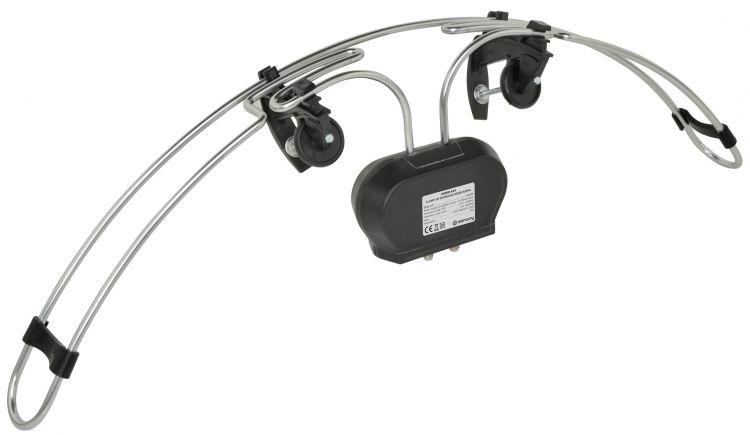

Mercury 130.020 Clamp-on Mixer Aerial An advanced wideband aerial designed to clamp onto a satellite dish. The built in signal mixer transmits both TV and satellite signals down a single cable, then at the end of the cable run a diplexer separates the TV and satellite signals. Features: Designed to mount on a satellite dish, saving the need for mast installation Compatible with both analogue and digital TV reception (DVB-T, ISDB-T, DMB-T/H, ATSC) Wideband reception range for FM/VHF/UHF signals Built-in signal mixer allowing terrestrial signal to be transmitted down the same cable as satellite signal Built-in low noise amplifier to minimise signal loss Supplied with diplexer to separate TV and satellite signals Supplied with 1.0m F plug to F plug lead (1 lead for 130.020, 2 leads for 130.021) Available in single input for single LNB and double inputs for twin LNB Power: Via satellite receiver 13-18Vdc, 60mA Frequency range: VHF 87.5-230MHz Frequency range: UHF 470-862MHz Impedance: 75 Ohms Insertion loss: 3dB Satellite pass band: 950 - 2150MHz Input/Output: 1/1 Input: 1 x Sat Output: 1 x Mix Gain: VHF 30dB Gain: UHF 27dB Colour: Black
